Name: PU Polyurethane Spray Machine For Wall Roof Refrigerator And Box Pipe Insulation
Brand: RongXing
Price: 1 USD

Brand Name : RongXing

Model Number : RX-3000

Certification : CE

Place of Origin : Shanghai

MOQ : Negotiation

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, paypal,credit card

Supply Ability : 100 set/month

Delivery Time : 5-10 working days

Packaging Details : wooden case,1000*900*1500mm

Product Name : Polyurethane Spray Machine

Material : PU

Application : Wall Roof Refrigerator And Box Pipe Insulation

Max working pressure : 20Mpa (200bar)

Max output : 4-14kg/min (19.8 lb/min)

Pipeline insulation heating power : 3500W

Contact Now

PU Polyurethane Spray Machine For Wall Roof Refrigerator And Box Pipe Insulation

Polyurethane Spray Machine Describe:

The perfect coaxial structure design of the horizontal booster pump reduces greatly the abrasion of the sealing. There is no pressure difference during operation and the commuting pressure fluctuation value is ideal and stable.
The lubricant inside the anti-solidifying lubricating cylinder circulates with high speed so that the leaked material and impurities could be brought away rapidly. The shaft for black material is always kept in the lubricant avoiding the crystallization.
The delicate coupling structure is easy for the dismounting of the booster pump during the maintenance. When necessary, the complete unilateral raw material pump can be replaced to change the proportion of the raw material.
The pneumatic commuting control assembly is simple in structure and reliable in operation, and enables the pump body operating normally during the lack of electricity.
The design and application of the reset function when shut down realizes the dual protection.

Polyurethane Spray Machine Parameters

Product Name:	PU Polyurethane Spray Machine For Wall Roof Refrigerator And Box Pipe Insulation	The Ratio Of Raw Material:	1:1
Max Fluid Temperature:	80°C (176°F);Heating Power:12.5KW	Max Output:	4-14kg/min (19.8 lb/min)
Heater Power:	3000W×2	Pipeline Insulation Heating Power:	3500W
Spray gun clean	Self-clean by air	Voltage (Optional)	1-ph 220V 50Hz or 3-ph 380V 50Hz
Pneumatic source	0.5-0.8Mpa 1m³/min (73-116psi 35 cu ft)	P2 spray gun	1 pc
Transfer pump	2 pcs	Heated hose	15M
Max hose length (Optional)	(Optional)905M	Transfer pump hose	2 pcs(1.5M*2)
Air pipe:1 set	Spare parts and tools:1 set	Package size (L×W×H)	1470900750mm
Net weight/Gross weight	180k/230kg	Feature	high speed

Polyurethane Spray Machine Use area:

Building exterior wall, cold storage, automobile, chemical storage tank, workshop workshop, grain depot, farm shed and so on.

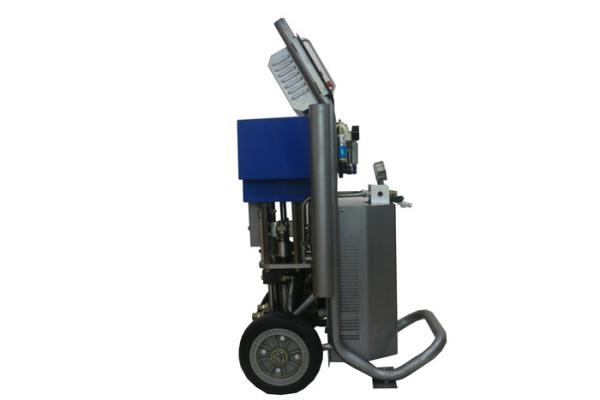

Polyurethane Spray Machine Picture:

PU Polyurethane Spray Machine For Wall Roof Refrigerator And Box Pipe Insulation
